4.6in Fin Swim Hand Injection Mold - Epic Internal System
The 4.6in Fin Swim is part of our patent pending, Epic Internal System, which requires jigs made from lead mold LM-1 using the specified hooks.

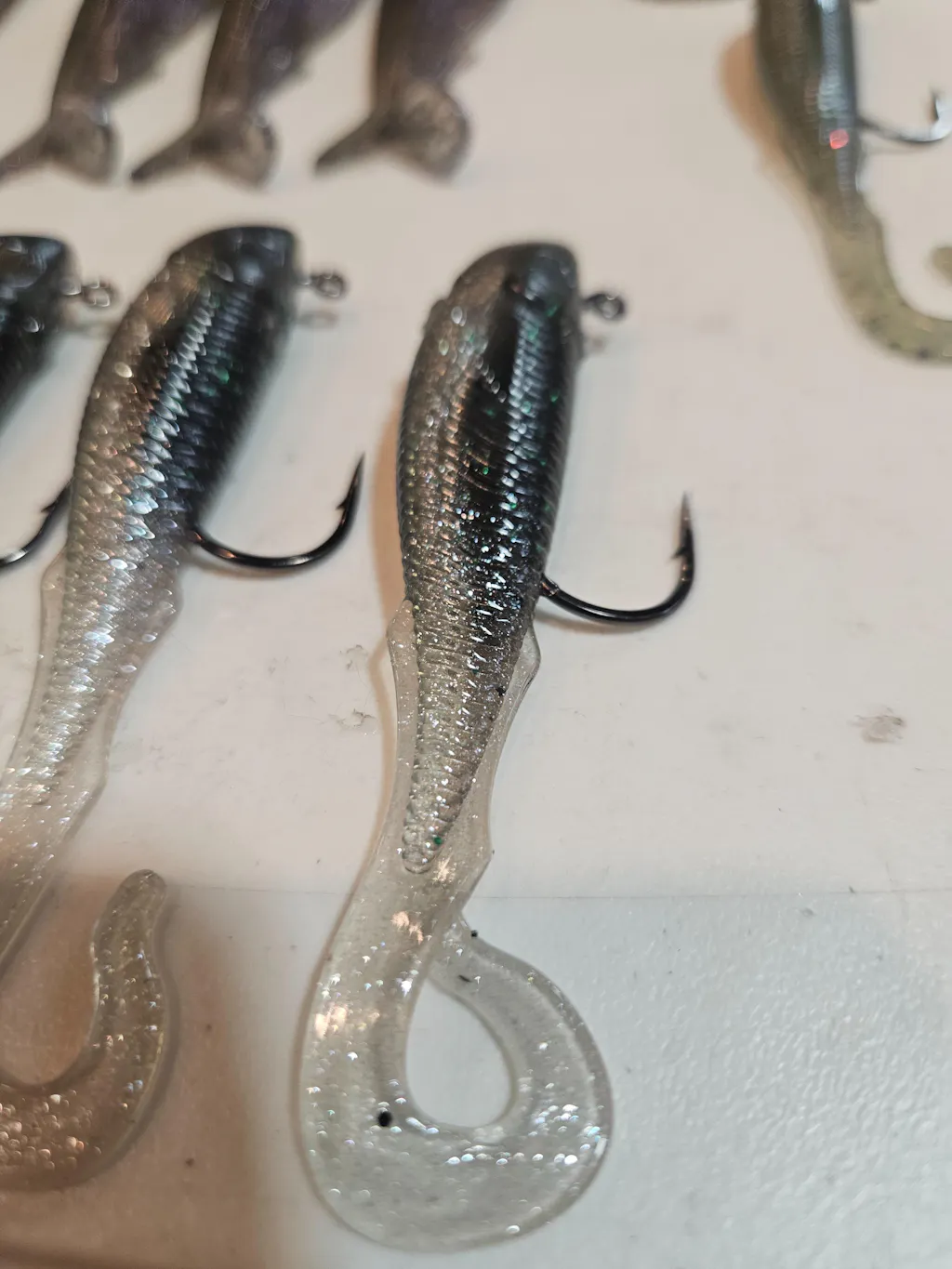

The 4.6in Fin Swim is an internally weighted swim bait that has a fast tail flutter at any speed. The body of this bait is .675" tall and .575" wide and features life-like scales and side fin. There is a flat eye socket for eyes up to 3/16" in diameter to be glued onto after the bait is made.
To use this mold, insert jigs made from the Epic Internal System lead mold LM-1 into the mold cavity. Hook the bend of the hook under the head of the small screw included in the mold then place the eye of the hook into the pocket near the nose of the bait. This screw holds the hook/lead in place while you align the remaining hooks and close the mold. Once the mold is closed the hook will precision align inside the cavities using the hook shank. Place clamps on the mold to hold it shut and inject as you would a normal soft plastic mold using a medium blend plastisol (we recommend Bait Plastics 242) at a temperature of 310-320 degrees Fahrenheit holding light pressure after injecting each cavity.
4 cavity mold dimensions - 7"x6"
Made in the USA from 6061 Aluminum
(Baits and jig heads not included)
Shipping Included in the USA
[*International shipping to several countries available at checkout. If you do not see your country available at checkout, contact us at EpicBaitMolds@gmail.com for an international shipping quote]
